 PIONEER MAGNETICS PRODUCT CATALOGUE Section 13

Click here for printable PDF document (section 13) - Click here for printable PDF document (entire catalogue)

SINGLE OUTPUT SERIES
3.5” X 5” DC TO DC

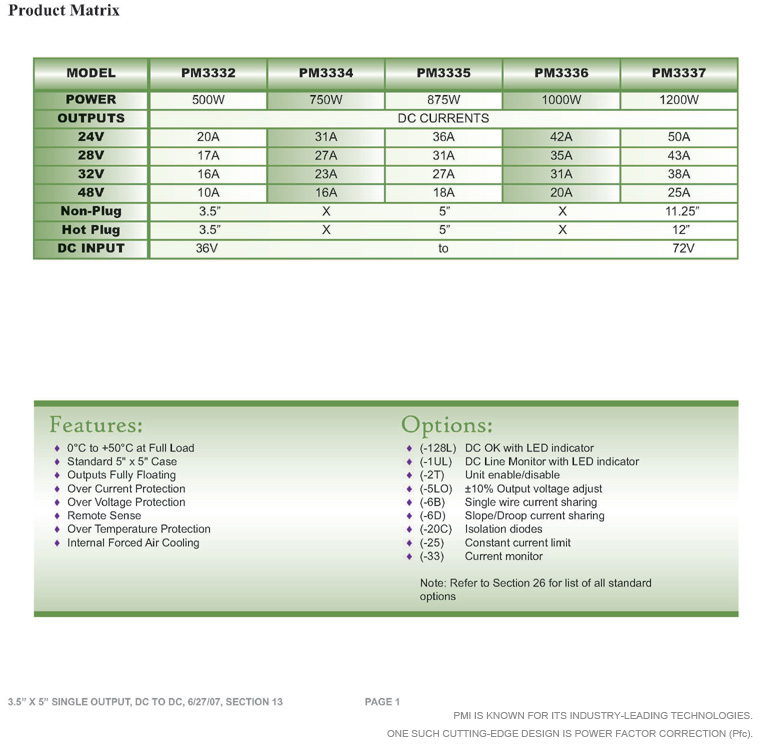

Pioneer Magnetics, Inc. releases the new DC to DC Product Series providing up to a 1,200 Watt, high density DC-DC converter. Full output is provided over a 36 to 75 VDC input and ambient from 0 to 50° C.

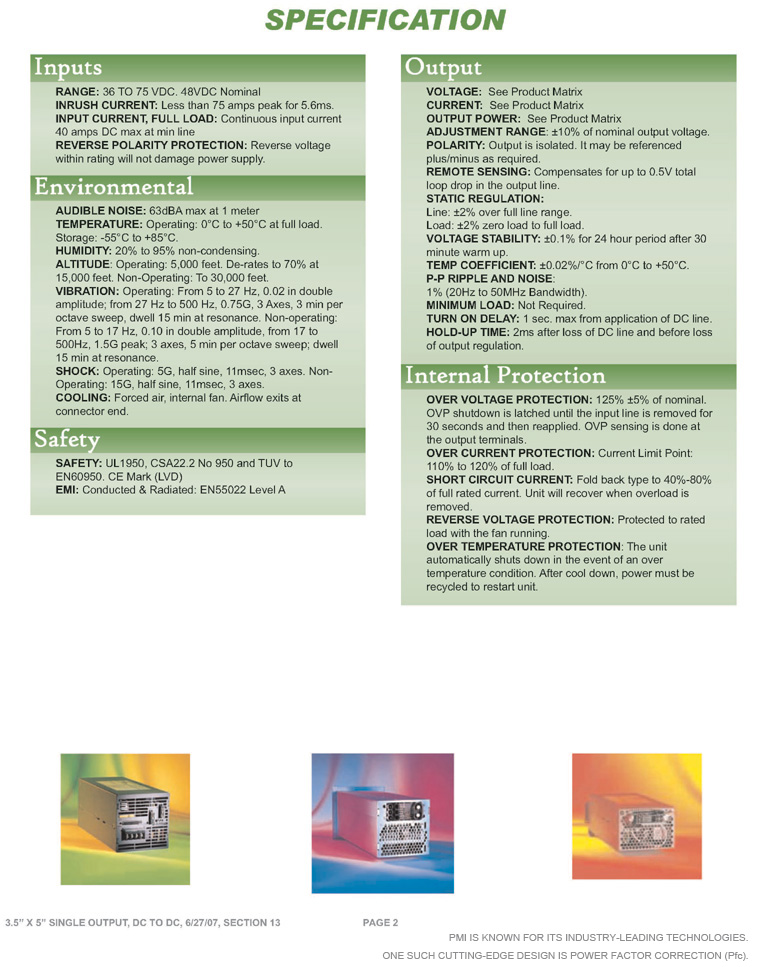

Standard features include over voltage, current and temperature protection; internal input fuse, remote sense, selfcontained forced air cooling, and, CSA, TUV safety. Typical options are input line monitor, DC output ok, remote enable/disable, single wire current share, output current monitor and isolation diodes for hot swap.
